· Contraste d'image élevé
· Uniformité de luminosité élevée
· Convient au capteur 2,4u, résolution jusqu'à 10MP
· Compact, léger et durable

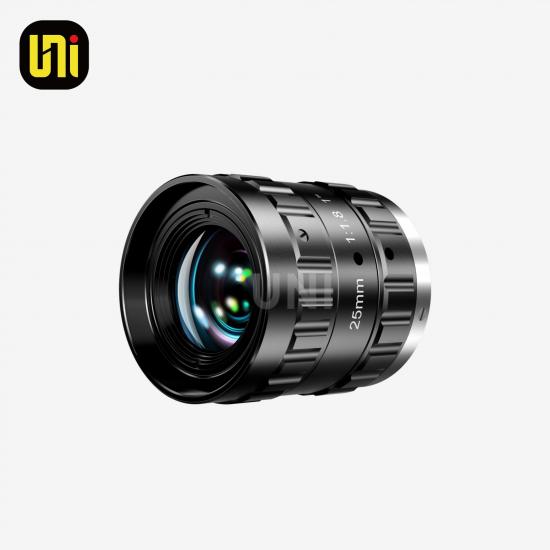

| Objectif Taurus Série 1 ″ Format FA ( 10 MP) |
|||
| Modèle |
UN-TFA2518L -10MP |
||
| Distance focale |
25 mm |
|
|
| Ouverture |
F1.8-fermer |
||
| Format d'image |
1"(16mm) |
||
| Monter |
C |
||
|
Angle de champ
|
|
P x H x V (°) |
|
| 1" |
36,21°×29,08°×21,86° |
||
| 1/2'' |
18,45°×14,72°×11,08° |
||
| 1/3" |
13,81°×11,08°×8,34° |
||
| Distorsion optique |
<-0,49% |
||
| MODÈLE |
0,15m |
||
| Dimension |
Φ33*35,7 mm |
||
| Bride BFL |
1 7 . 5 26mm |
||
| Distance focale arrière _ _ |
12,6 mm |
||
| Opération |
Iris manuel |
||
| Mise au point manuelle |
|||
| Longueur d'onde de conception |
420 ~ 1000 nm |
||
| Fil de filtre |
M30,5×P0,5 |
||
 |
|||
