· Contraste d'image élevé
· Uniformité de luminosité élevée
· Convient au capteur 2,4u, résolution jusqu'à 10MP
· Compact, léger et durable

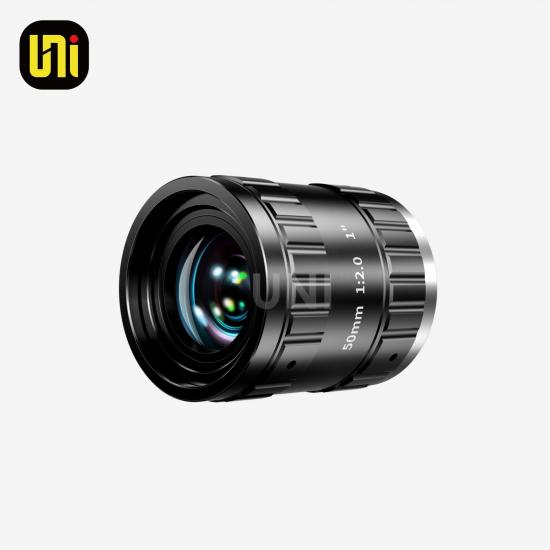

| Objectif Taurus Série 1 ″ Format FA ( 10 MP) |
|||
| Modèle |
UN-TFA5020L -10MP |
||
| Distance focale |
50 millimètres |
|
|
| Ouverture |
F2.0-F22 |
||
| Format d'image |
1"(16mm) |
||
| Monter |
C |
||
|
Angle de champ
|
|
P x H x V (°) |
|
| 1" |
18,38°×14,70°×10,98° |
||
| 1/2'' |
9,34°×7,42°×5,5° |
||
| 1/3" |
6,96°×5,53×4,16° |
||
| Distorsion optique |
<-0,013% |
||
| MODÈLE |
0,3 m |
||
| Dimension |
Φ41,4*48,1 mm |
||
| Bride BFL |
1 7 . 5 26mm |
||
| Distance focale arrière _ _ |
21,3 mm |
||
| Opération |
Iris manuel |
||
| Mise au point manuelle |
|||
| Longueur d'onde de conception |
420 ~ 1000 nm |
||
| Fil de filtre |
M37 × P0,5 |
||
 |
|||
